SINTRA Mix-Ind Air Pulsion Technology – Revolutionizing Air Distribution
SINTRA MIX-IND systems offer advanced air distribution solutions that outperform traditional systems, providing superior energy performance and enhanced comfort levels. With patented technologies such as PULSERS®, TWIN™, and more, SINTRA sets a new benchmark for HVAC systems in commercial and industrial spaces.
PULSERS®: The Key to Innovative Air Pulsion
The PULSERS® technology is a cutting-edge air distribution solution that mixes input air with ambient air to create a controlled pressure field within ducts. This allows for efficient movement of air throughout the entire space, ensuring optimal air distribution and consistent temperature regulation. PULSERS® ducts are perforated with bespoke designs and come in two perforation sizes, increasing airflow efficiency.
TWIN™ Technology – Flexible Air Distribution
TWIN™ technology takes the functionality of PULSERS® a step further by using multiple parallel ducts to provide variable airflow. This ensures greater flexibility and energy savings, making it possible to tailor the system’s output to your building’s specific needs.
Key Features:
- Primary pulsers® (functional pulsers®) maintain consistent airflow and temperature homogeneity within a ±1°C range.
- Secondary pulsers® help introduce excess airflow without disrupting primary air distribution.
VARIBOOST® – Optimized Airflow When You Need It Most
The VARIBOOST® system boosts airflow dynamically, adjusting airflow levels in response to changes like loading bay openings or newly introduced materials. Special dampers intercept the secondary airflow to ensure the primary pulsers® continue to function effectively without compromising performance.
VARIAMIX® – Enhanced Performance Across Air Speeds
The VARIAMIX® system is a calculated perforated design that allows airflow variations between 70% and 100% without significantly affecting performance, ensuring consistent efficiency in air distribution.
HYGROCOOLING® – Efficient Humidification and Cooling
HYGROCOOLING® utilizes the micro-turbulent flux created by the PULSERS® to atomize water droplets, providing efficient humidification and adiabatic cooling for optimal comfort. This patented technology ensures the system can adapt to environmental changes, making it ideal for environments that require precise temperature and humidity control.

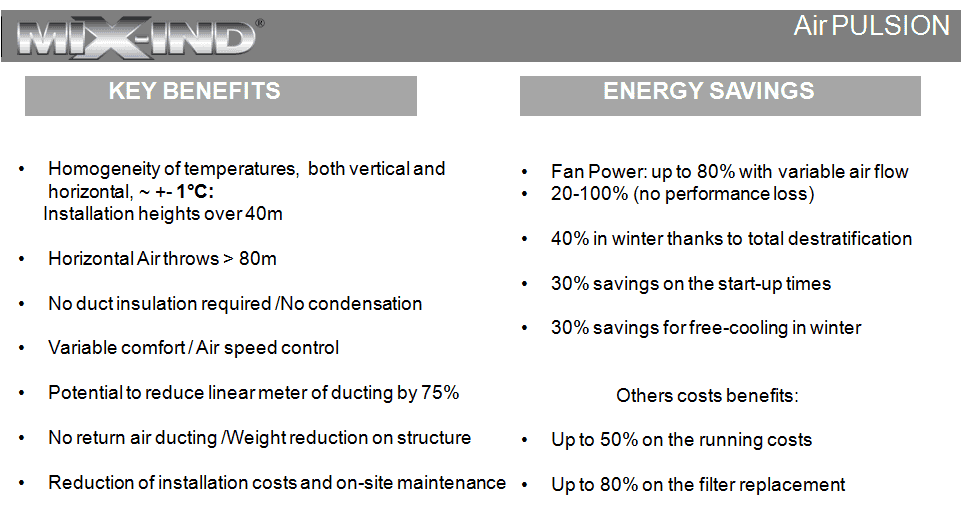

Compared to traditional Air Distributions Systems, MIX-IND systems offer the following significant advantages: -
- Homogeneity of both vertical and horizontal temperatures (with +/- 1
- oC, regardless of the building height);
- Maximum comfort with optimal control of the residual speeds in the occupied zone;
- Total de-stratification, especially for high buildings, even higher than 40m;
- No return air ducts, therefore less pressure loss for the fans, less maintenance costs, less encumbrances and reduced cost of the ducts;
- Total recovery of all endogenous heat produced in the local (engines, lighting, etc.);
- Applicable both to high-rise and low-rise buildings, without any loss of performance;
- Easy to bypass any potential major obstacles on the site;
- Possibility to introduce air at low temperature directly into the room without discomfort or condensation problems;
- Ability to perform long air throws, so less ducts to install, less weight on the structures, less encumbrances in the room and a lower total cost of ducts;
- Possibility to significantly reduce the overall cost of the plant, using the free service of AIDED DESIGN with can eventually allow an optimization of the plant’s air flow, especially for medium and large volume buildings.
Benefits of SINTRA Mix-Ind Systems Over Traditional Air Distribution
Compared to traditional systems, MIX-IND technology offers substantial advantages:
- Consistent Temperature Control: Maintain horizontal and vertical temperature homogeneity with ±1°C accuracy, even in large spaces.
- Enhanced Comfort: Provides optimal comfort with controlled air speeds in occupied zones.
- Total Air De-stratification: Especially beneficial for buildings over 40m high.
- Cost Savings: No return air ducts mean less pressure loss, reduced maintenance, and lower duct costs.
- Efficient Heat Recovery: Captures all endogenous heat from equipment, lighting, and other sources.
- Versatile Applications: Ideal for both high-rise and low-rise buildings, with no performance loss.
- Flexible Installations: Can bypass major obstacles and integrate air without condensation issues.
- Long Air Throws: Reduces the need for excessive ductwork, cutting installation time, costs, and structural weight.
- Optimized Design: Aided Design service helps optimize airflow for medium and large buildings, lowering overall system costs.

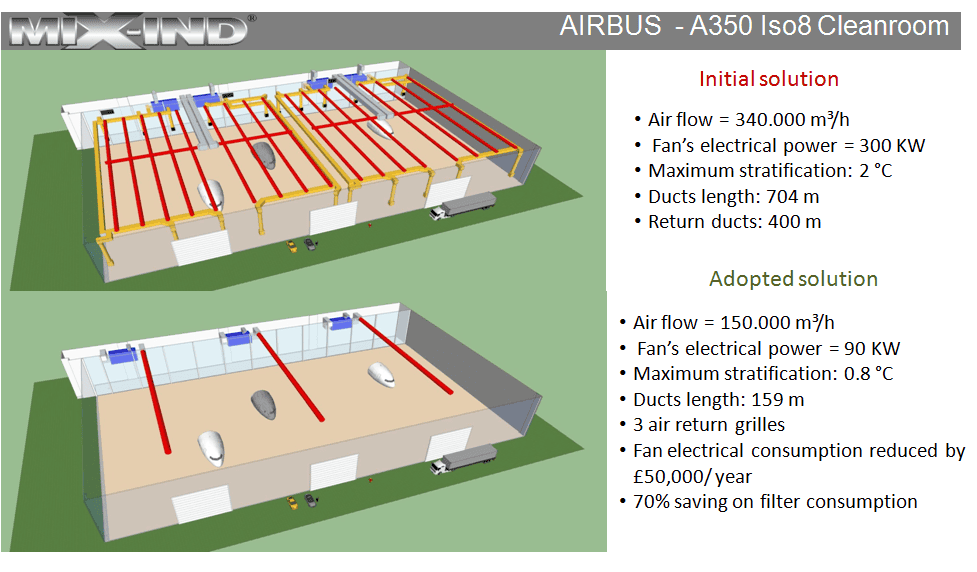

Case Study - AIRBUS Bouguenais
